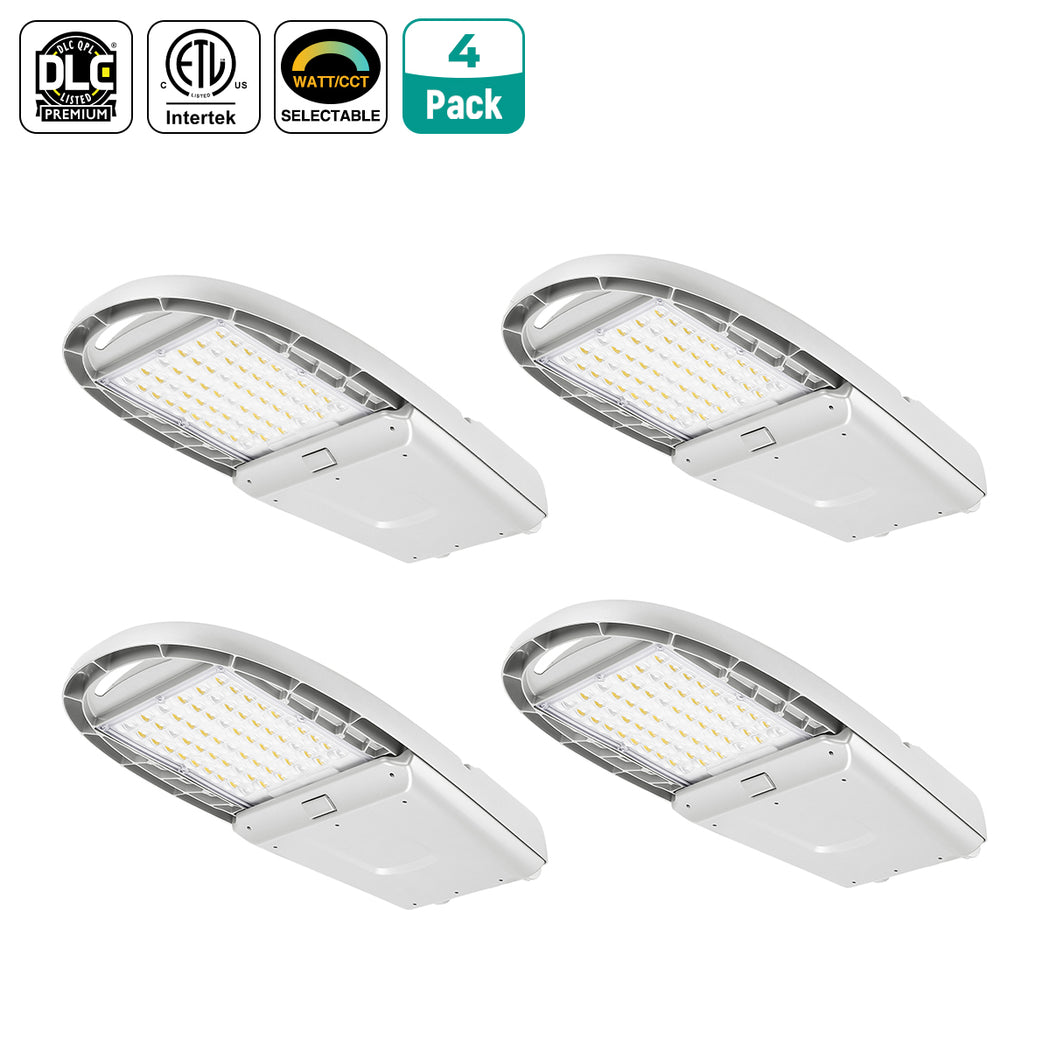

100W/150W Wattage & CCT Selectable LED Street Light with Photocell

100W/150W Wattage and CCT Selectable LED Street Light

The JCE Lighting ST03 LED street light is engineered for roadway, municipal, parking-area and commercial exterior lighting projects. Available in 100W and 150W models, each fixture provides four field-selectable wattage settings, allowing contractors to adjust the power and light output according to pole height, spacing and project requirements.

Selectable 3000K, 4000K and 5000K color temperatures make it possible to use one fixture across different roadway and exterior environments. The fixture also supports 120-277V input, 0-10V dimming, photocell control and optional sensor-based lighting controls.

Key Features

• Available models: 100W and 150W
• 100W selectable settings: 40W / 60W / 80W / 100W
• 150W selectable settings: 60W / 90W / 120W / 150W
• Selectable CCT: 3000K / 4000K / 5000K
• Input voltage: 120-277V AC, 50/60Hz

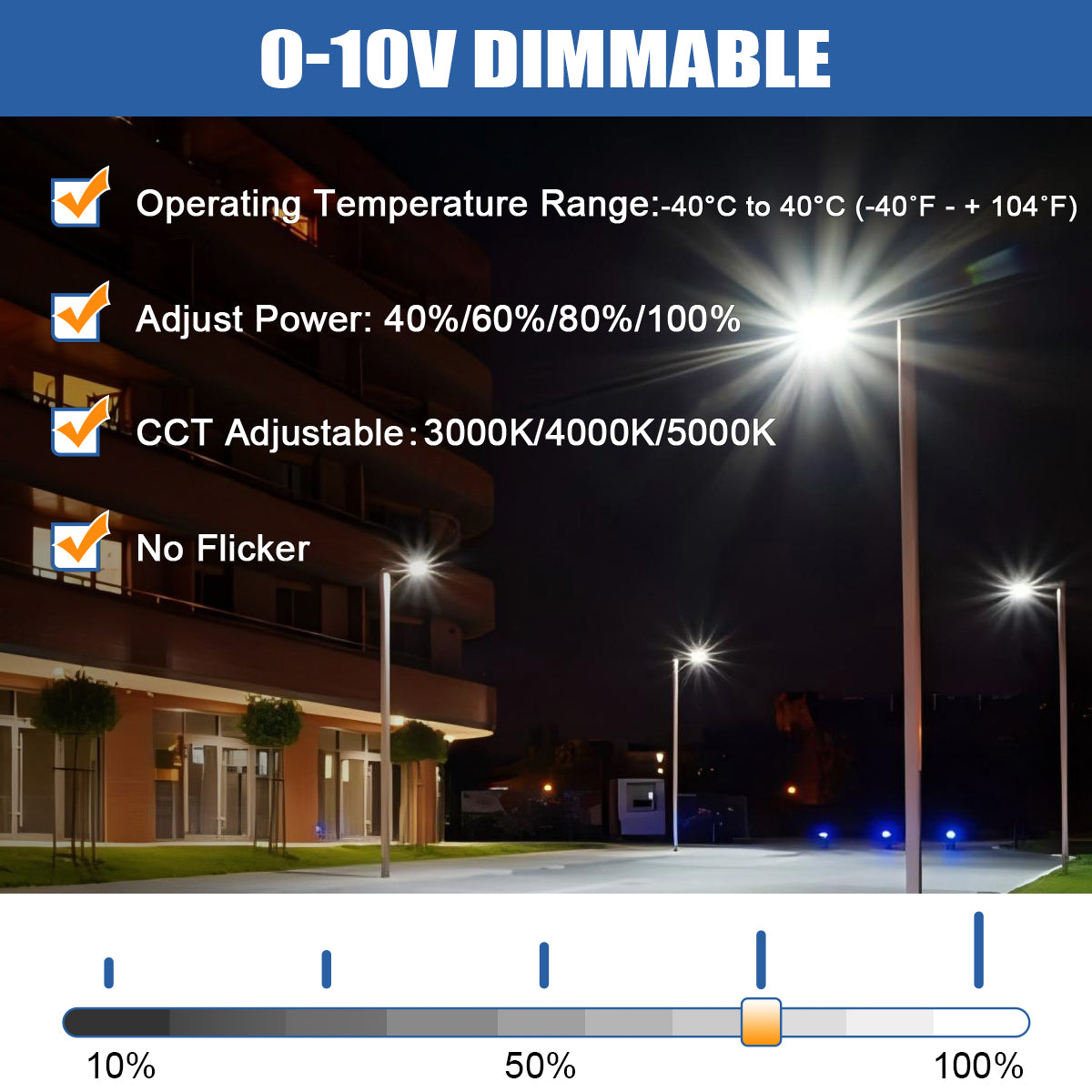

• Dimming: 0-10V dimming, 10%-100%
• Photocell: NEMA photocell configuration available

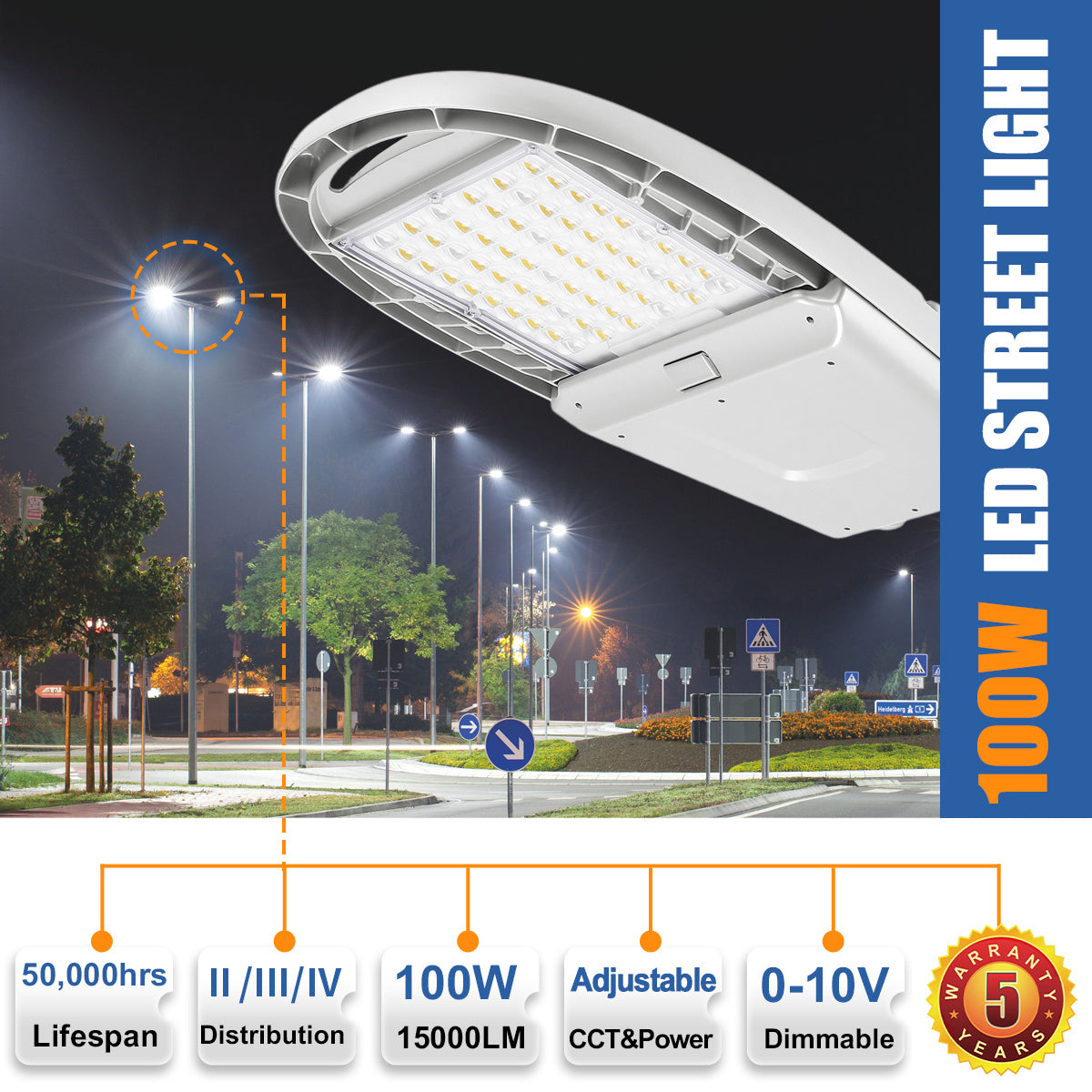

• Light distributions: Type II / Type III / Type IV
• Environmental rating: IP65 wet-location rated
• Construction: Heavy-duty cast aluminum housing
• Vibration rating: 3G vibration-resistant construction
• Power factor: Greater than 0.9
• Total harmonic distortion: Less than 20%
• Operating temperature: -40°F to 104°F
• Rated life: 50,000 hours
• Warranty: 5-year limited warranty
• Certifications: ETL/cETL and DLC; verify the exact listing by SKU

Choose the Right Model

Actual lumen output varies according to the wattage setting, selected color temperature, optical distribution and project conditions. Request an IES-based photometric layout before specifying fixture quantities for a commercial or municipal project.

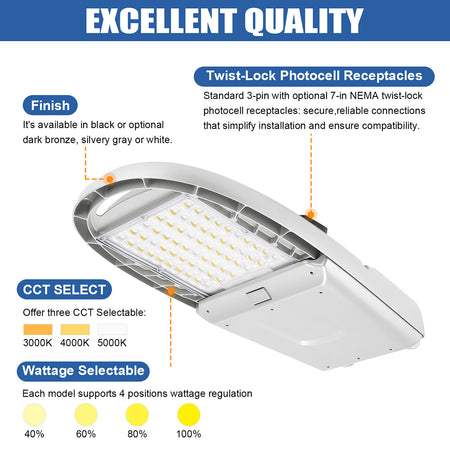

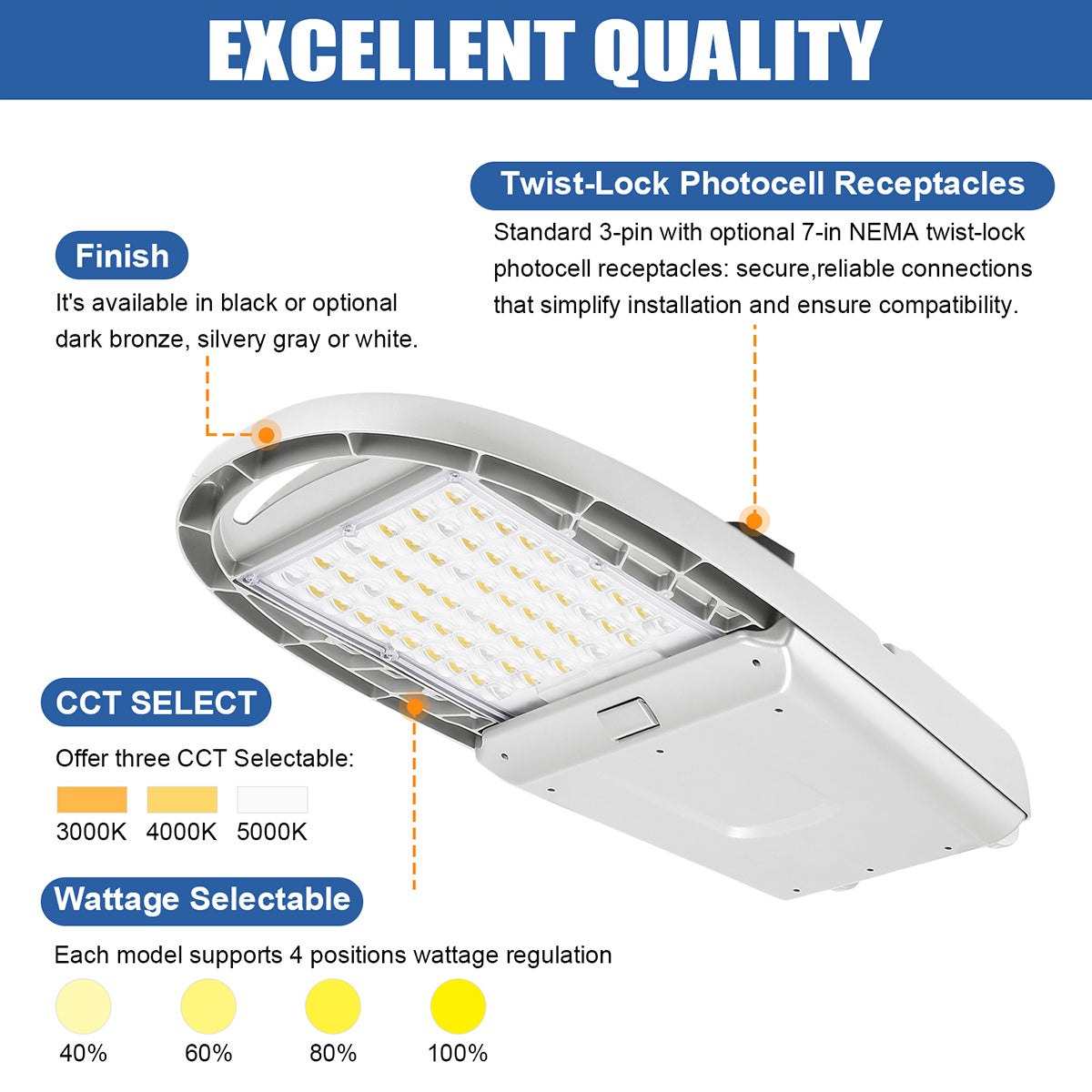

Field-Selectable Wattage

Each fixture includes four selectable wattage settings. Installers can adjust the fixture output in the field without replacing the complete luminaire. This helps distributors, electrical contractors and facility managers reduce the number of fixed-wattage products required for inventory and project planning.

Always disconnect power before changing the wattage or color-temperature selector. Close and seal the selector compartment before restoring power.

Selectable 3000K, 4000K and 5000K

• 3000K: Warm white illumination suitable for residential streets, hospitality environments and areas where lower visual harshness is preferred.
• 4000K: Neutral white illumination suitable for municipal roads, campuses and mixed-use commercial environments.
• 5000K: Daylight-white illumination suitable for commercial roadways, parking areas and security-focused exterior applications.

Type II, Type III and Type IV Distribution Options

Different optical distributions are available to match the fixture with the roadway width, pole position and required coverage:

• Type II: Designed for narrower streets, walkways and elongated roadway applications.
• Type III: Suitable for general roadways, parking areas and applications requiring wider lateral coverage.
• Type IV: Designed to project light forward from perimeter poles or building-edge mounting positions.

Confirm the required optical distribution before ordering. An IES photometric layout is recommended for projects with required average foot-candle, uniformity or property-line limits.

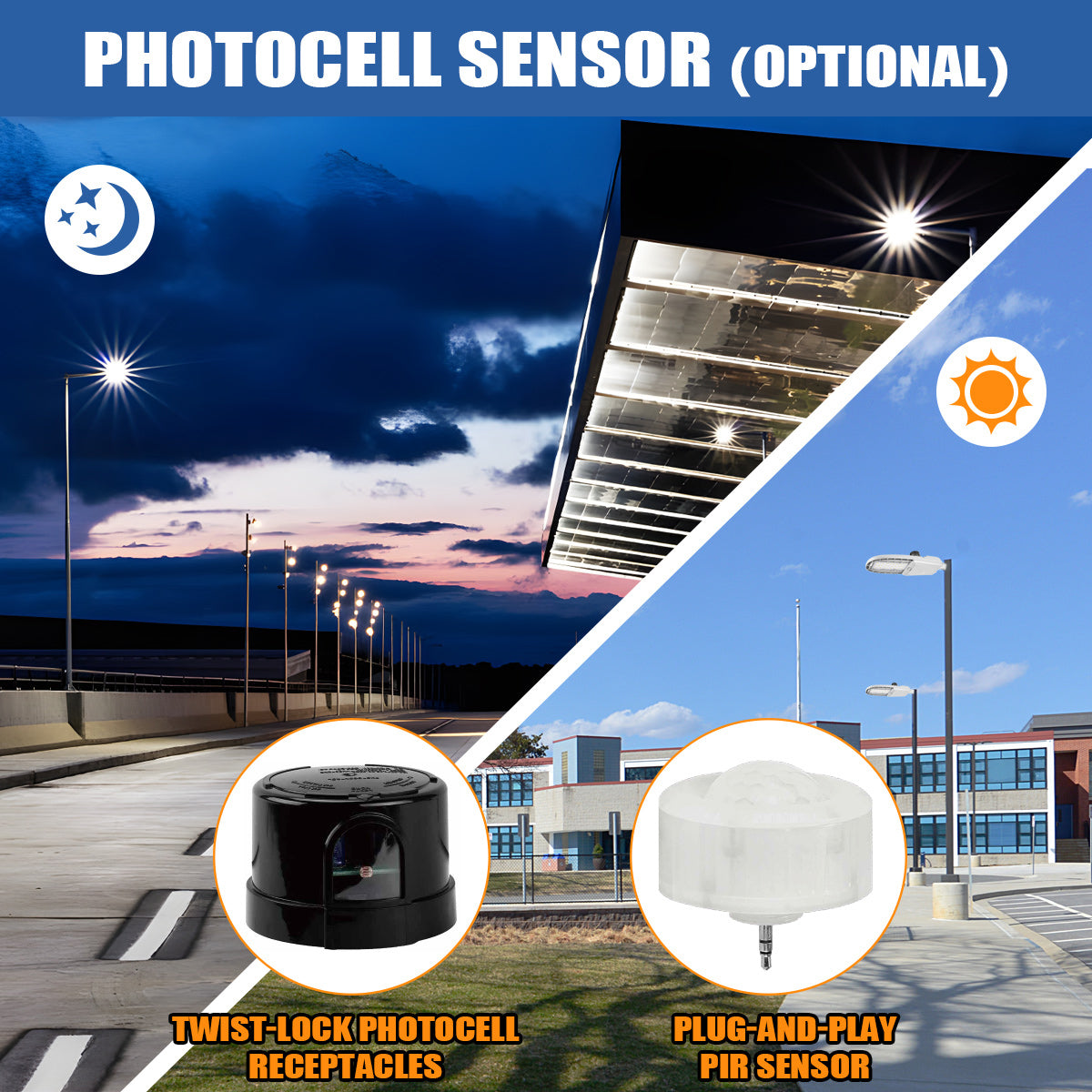

Photocell and Smart-Control Compatibility

The street light is compatible with NEMA photocell configurations for automatic dusk-to-dawn operation. Compatible PIR and Bluetooth control options may also be available for projects that require occupancy sensing, scheduling, dimming or networked lighting control.

Confirm whether the selected SKU includes a 3-pin or 7-pin photocell receptacle before placing a bulk order.

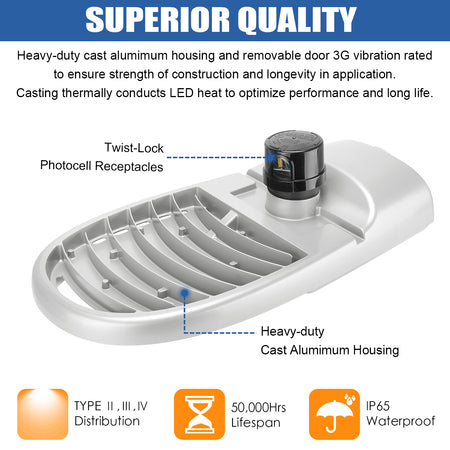

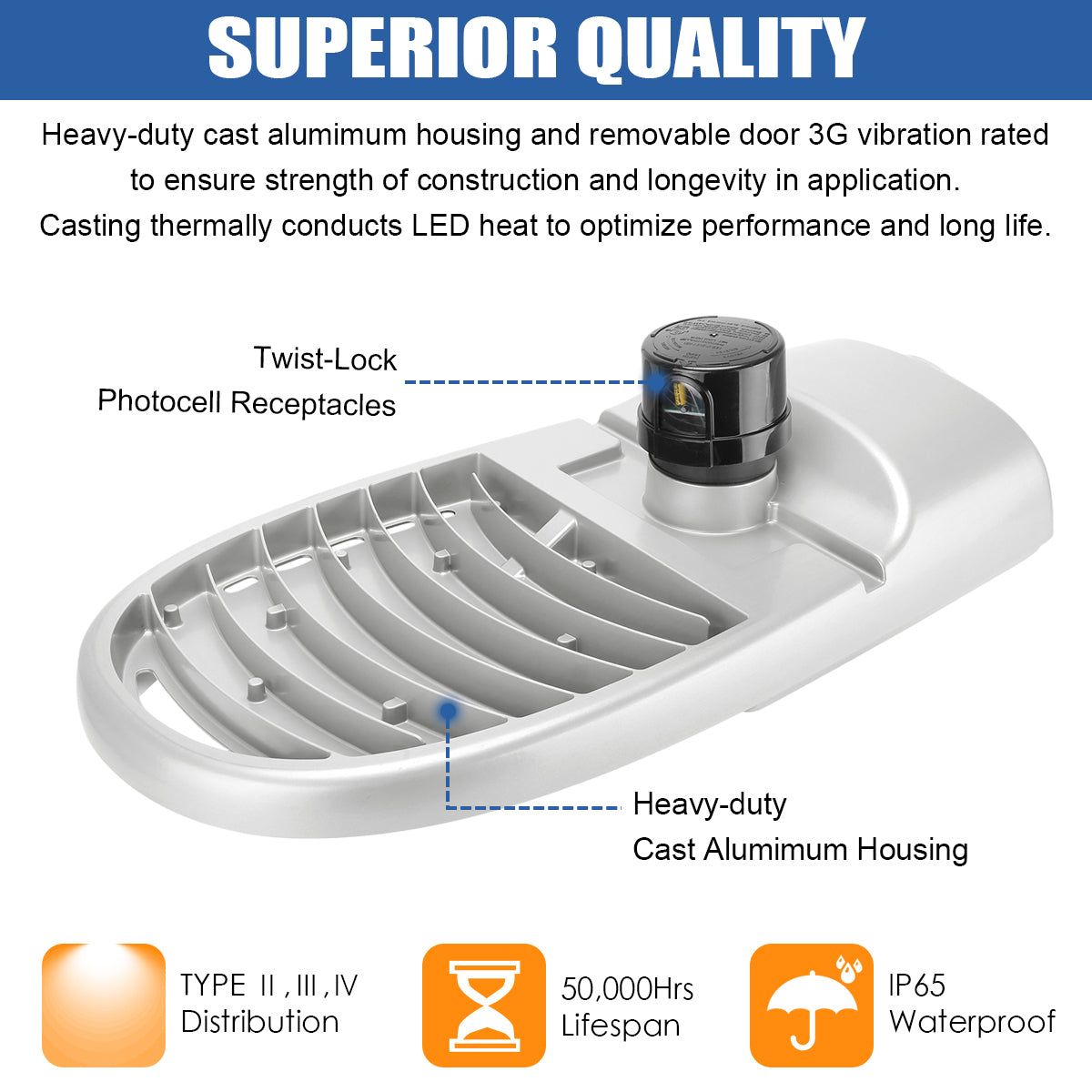

Commercial-Grade Outdoor Construction

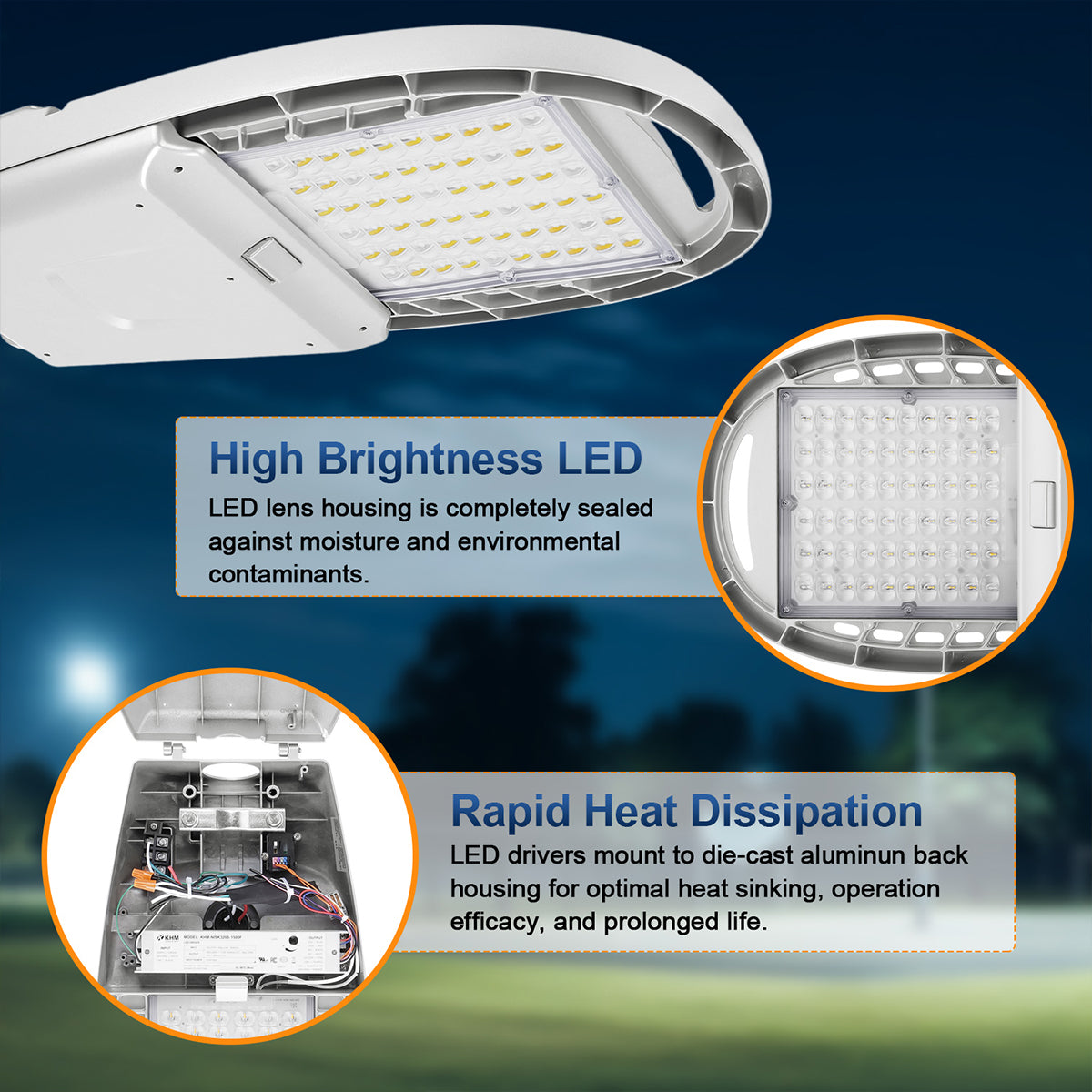

The heavy-duty cast aluminum housing supports heat dissipation and long-term outdoor operation. The LED and driver compartments are sealed against moisture and environmental contaminants, while the IP65 wet-location rating makes the fixture suitable for exposed roadway and commercial exterior installations.

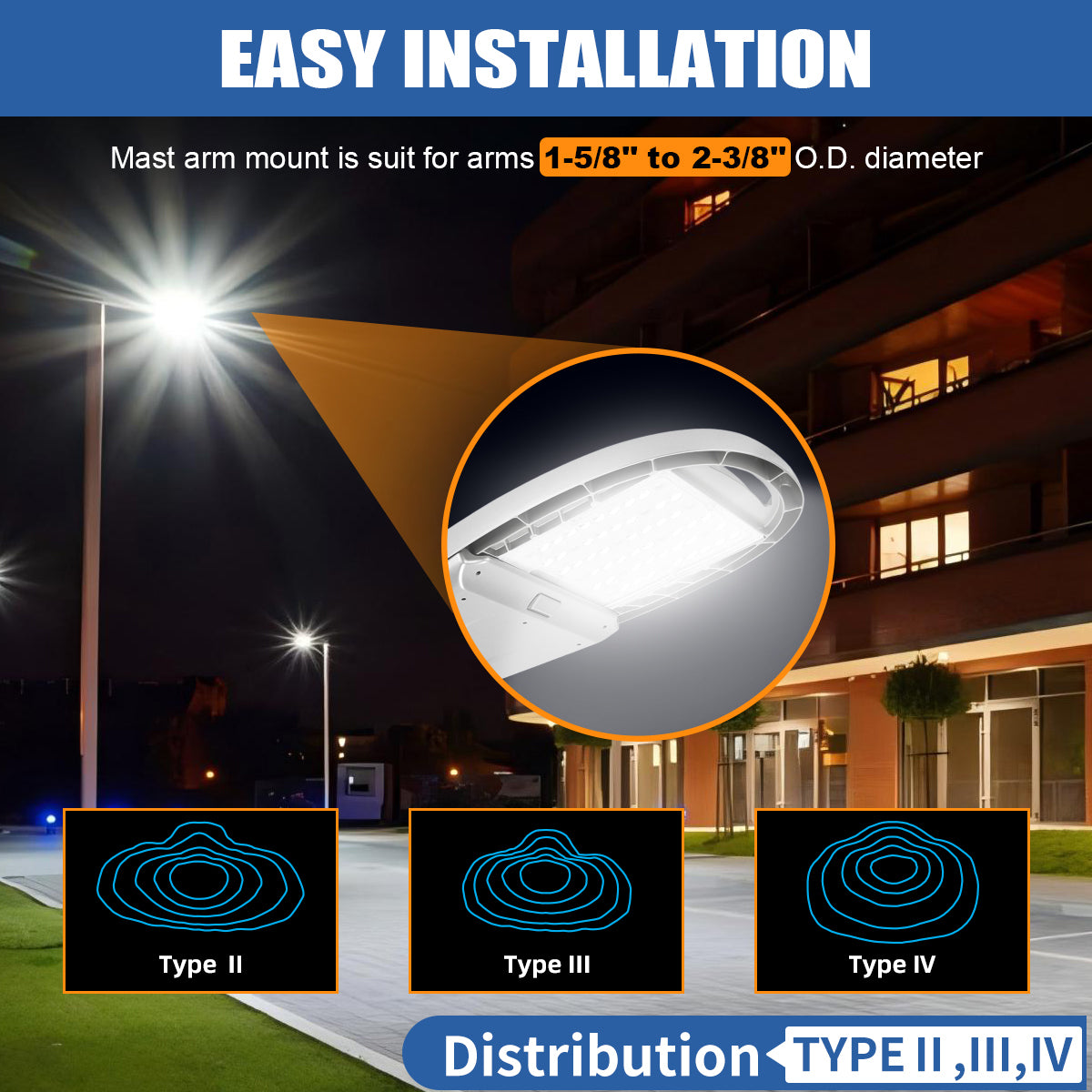

Mast-Arm Mounting

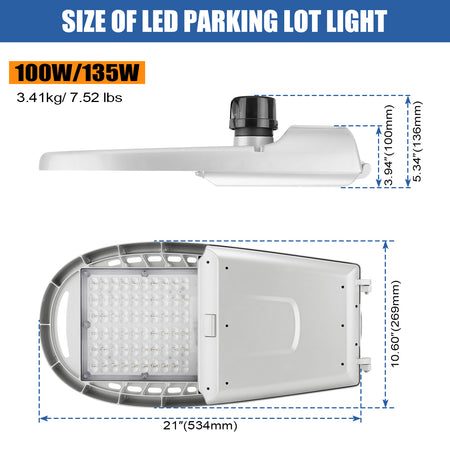

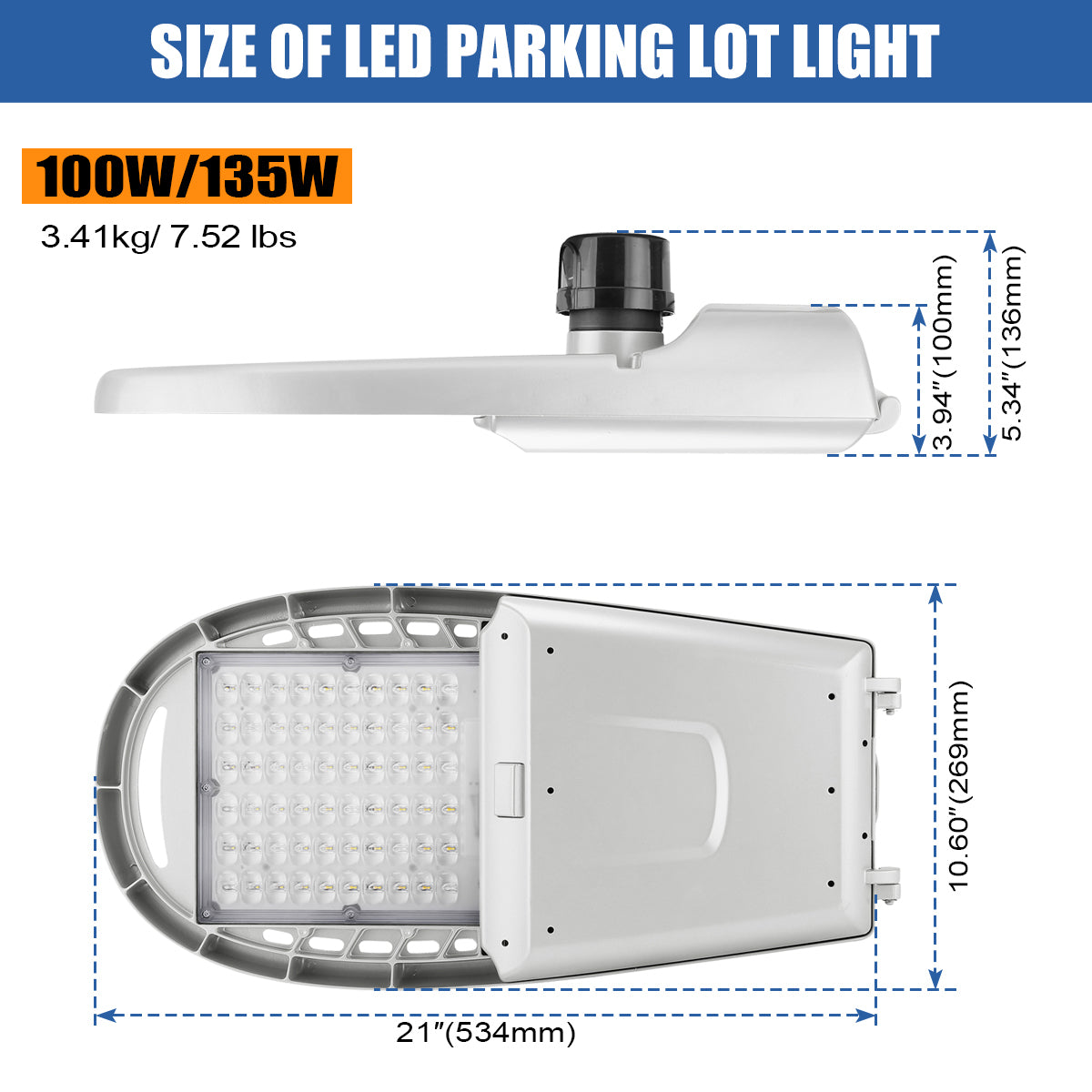

The mast-arm mount is designed for arms with an outside diameter of approximately 1-5/8 inches to 2-3/8 inches. Contractors should confirm the existing pole-arm diameter, mounting angle, fixture weight and EPA requirements before installation.

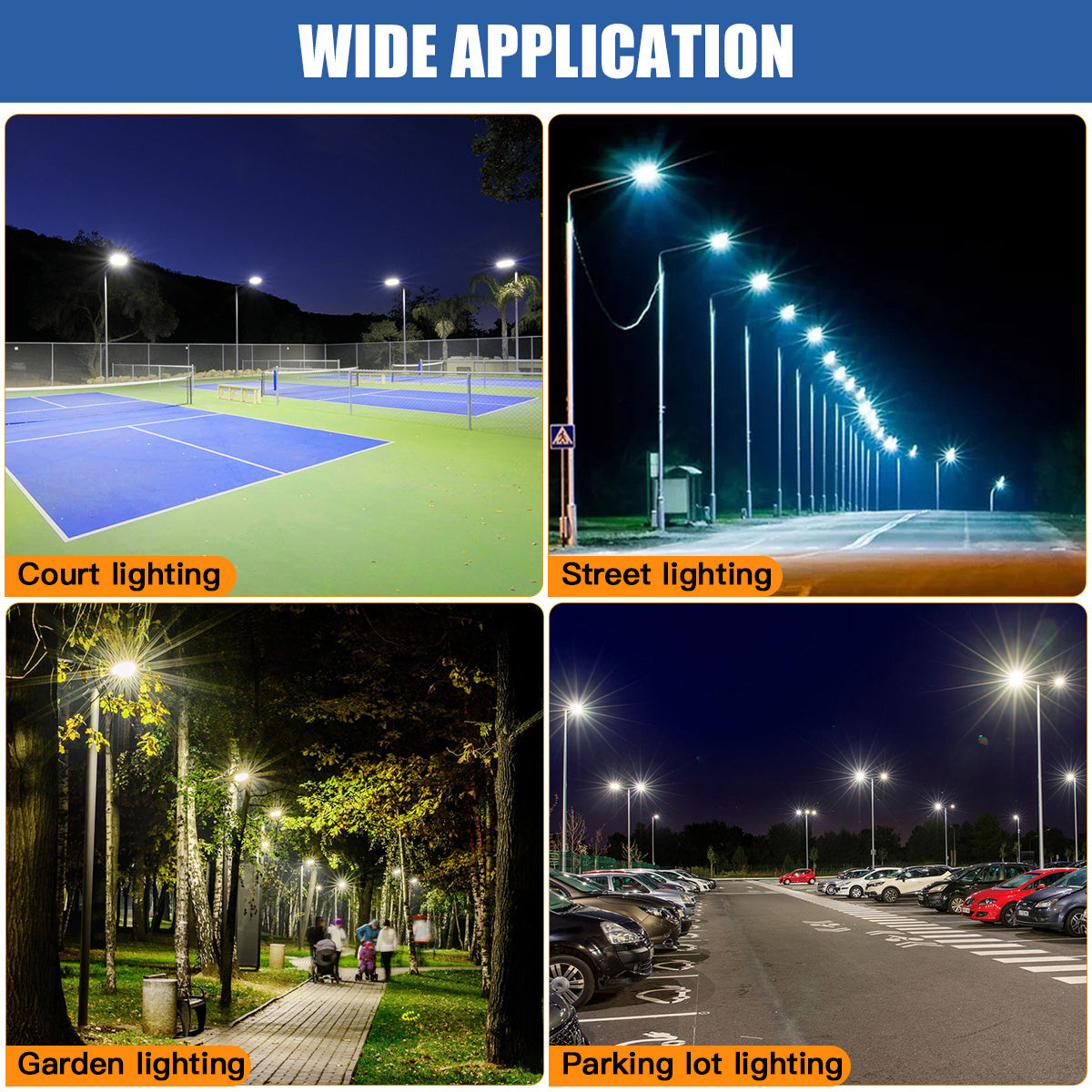

Recommended Applications

• Municipal streets and roadways
• Residential streets
• Commercial access roads
• Parking areas
• Schools and university campuses
• Industrial facilities
• Business parks
• Apartment and condominium communities
• Building perimeters
• Pedestrian and mixed-use exterior areas

Technical Specifications

Information for Project and Bulk Orders

For accurate pricing and fixture selection, provide the project address, pole height, pole spacing, arm diameter, required light levels, optical distribution, input voltage, photocell requirement and estimated quantity.

IES files, certification documents, installation instructions and photometric layout assistance should be requested before final approval for municipal, commercial or code-driven projects.
