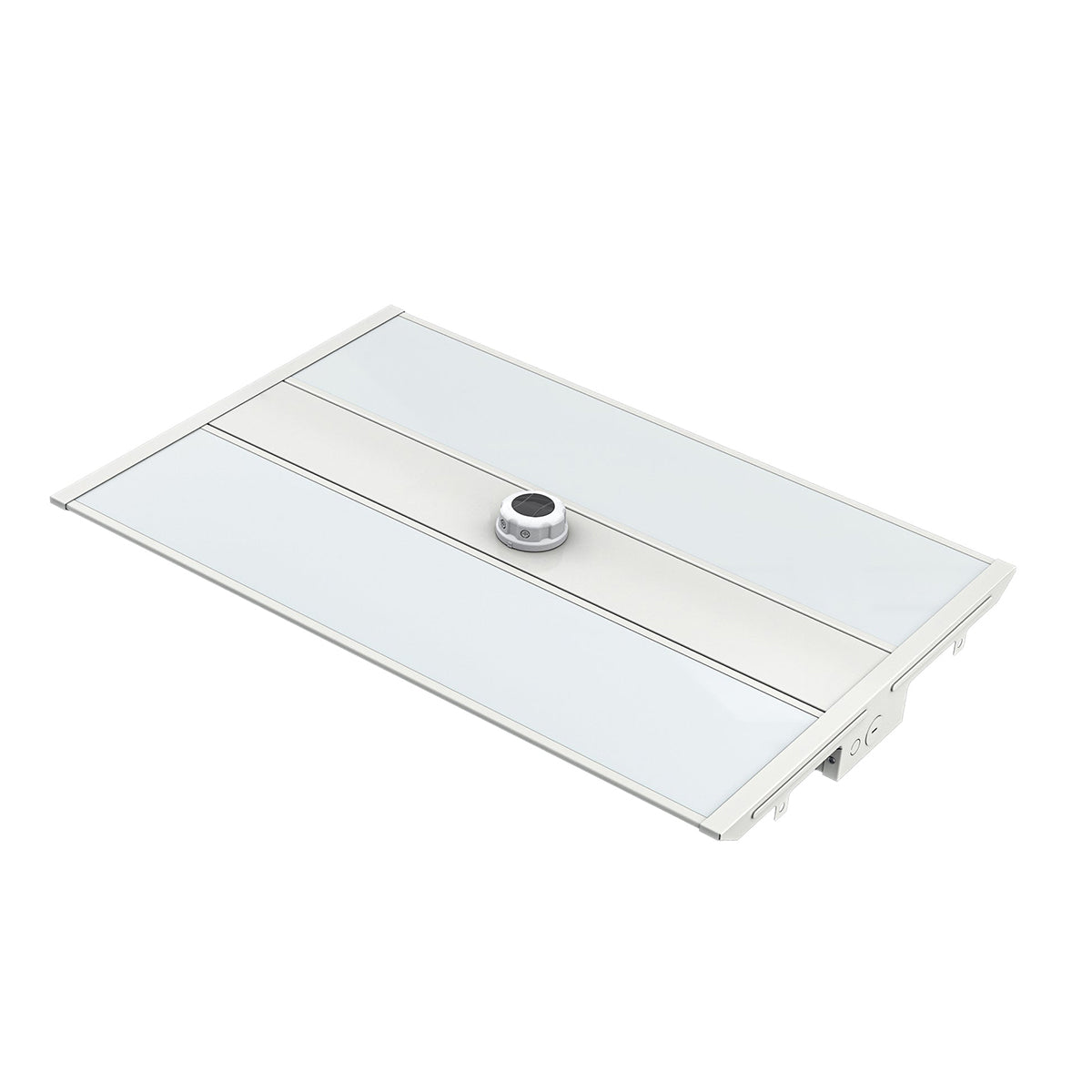

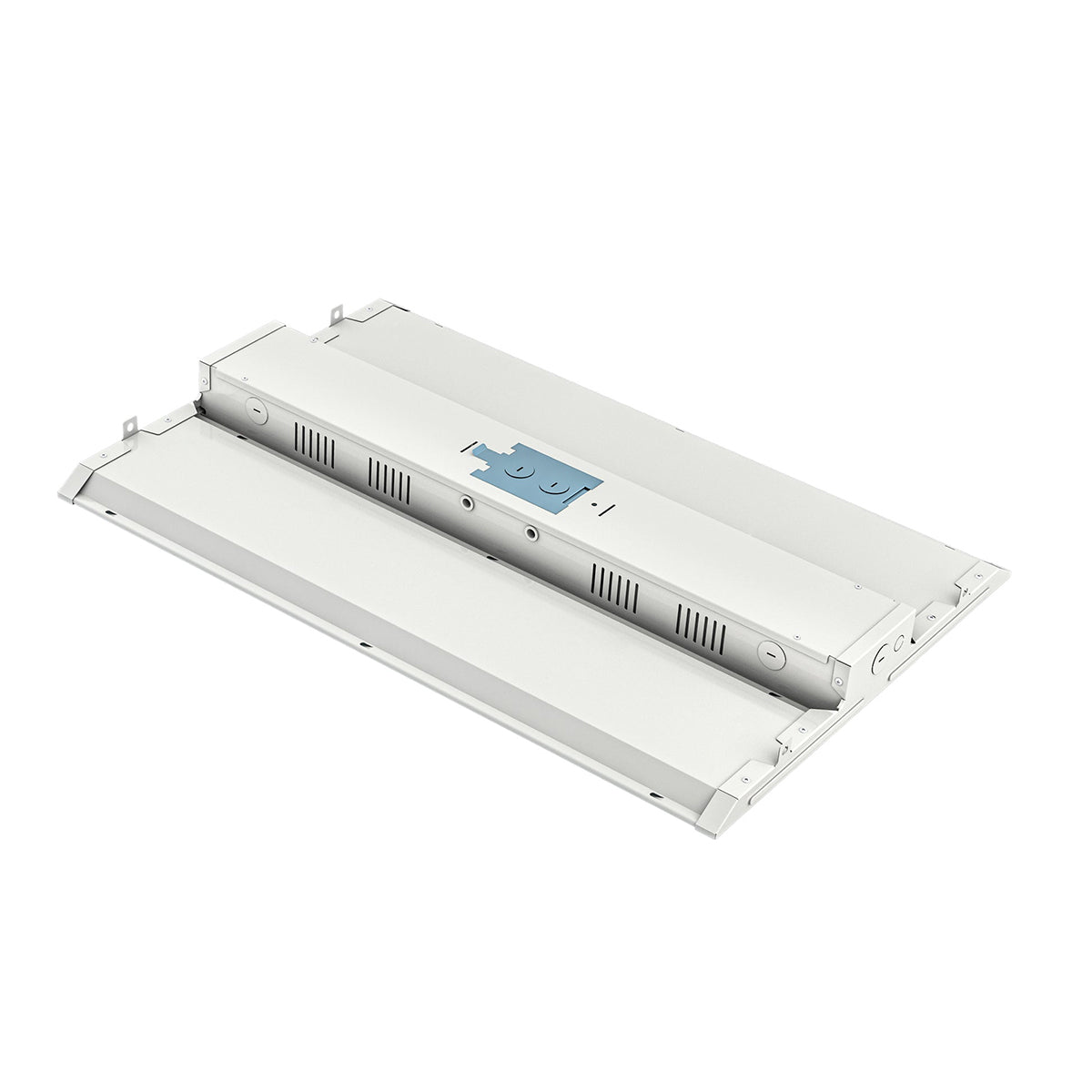

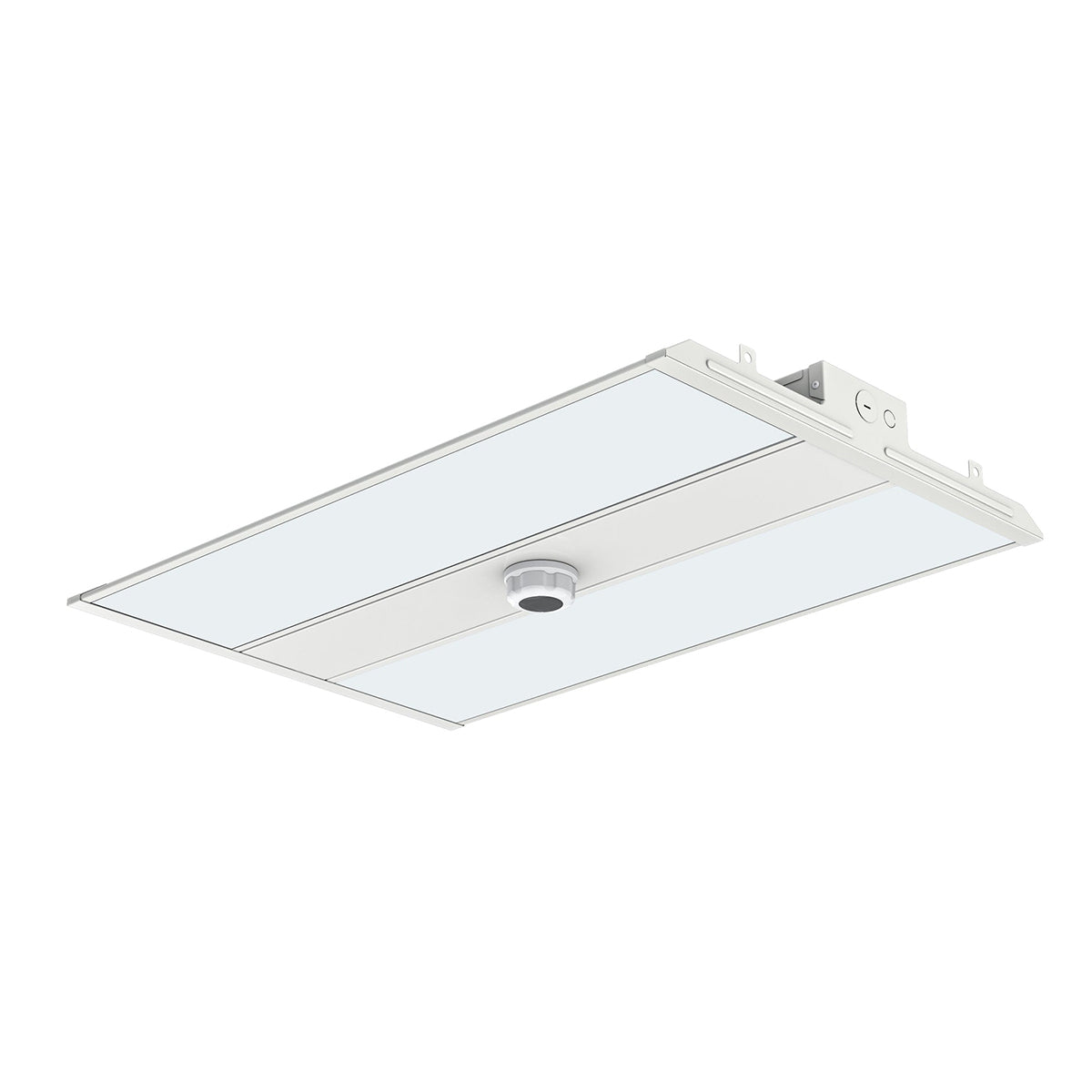

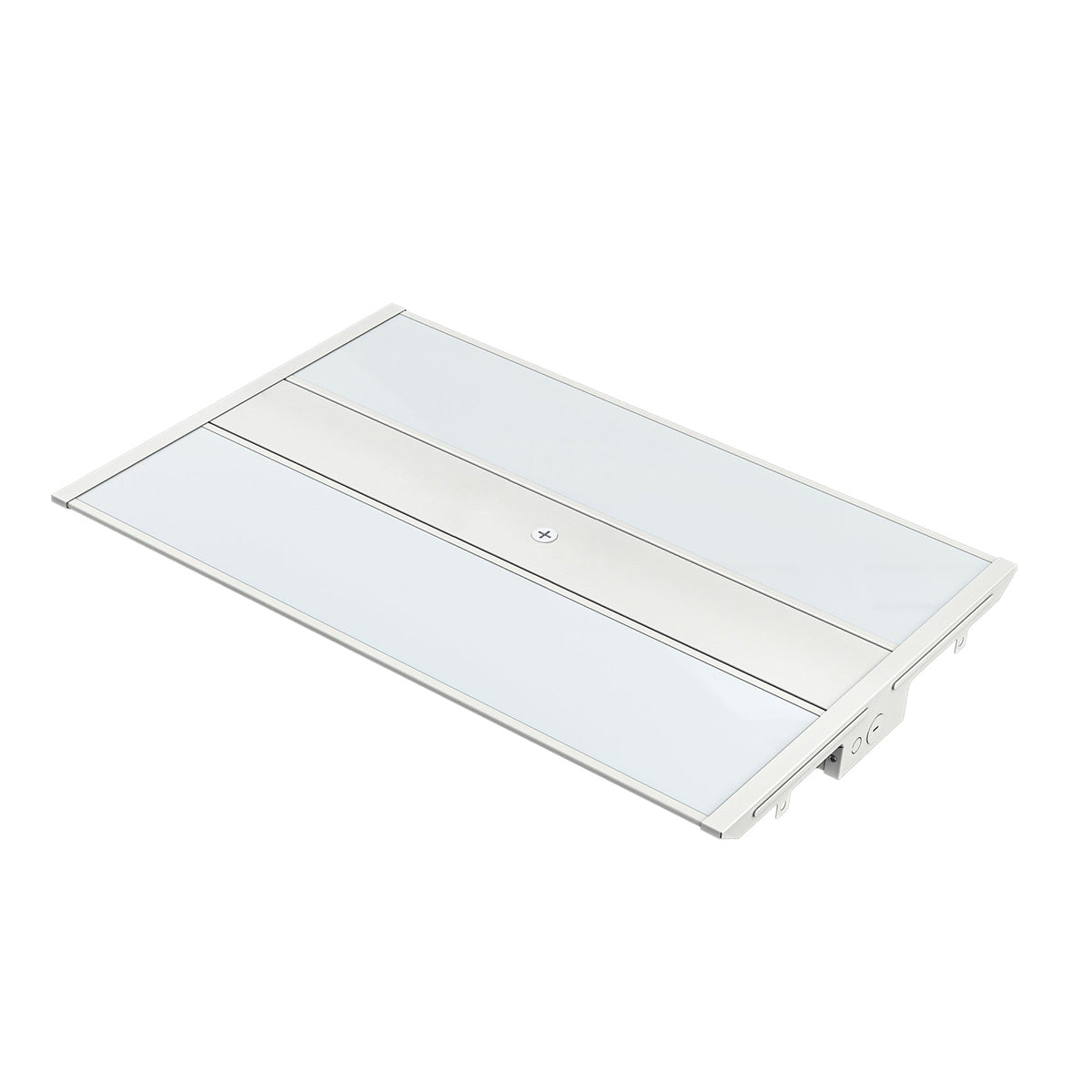

2FT LED Linear High Bay Light, 80W-165W Wattage Selectable, 6CCT, 0-10V Dimmable, 120-277V, DLC Premium

2FT LED Linear High Bay Light with Selectable Wattage & 6CCT

Designed for warehouses, factories, workshops, distribution centers, retail facilities, gyms, and other commercial or industrial high-bay applications, this 2FT LED Linear High Bay Light combines field-selectable wattage and color temperature in one versatile fixture.

The fixture offers five selectable wattage settings—80W, 100W, 130W, 150W, and 165W—allowing contractors and facility managers to adjust power and light output based on ceiling height, workspace requirements, and project conditions. With efficiency up to 150 lm/W, the fixture delivers up to 24,750 lumens at the maximum 165W setting.

Six selectable color temperatures—3000K, 3500K, 4000K, 5000K, 5700K, and 6500K—provide additional flexibility for different commercial environments without requiring separate CCT-specific fixtures.

Key Features

• 5-Level Wattage Selectable: Choose 80W, 100W, 130W, 150W, or 165W to match different lighting requirements.
• 6CCT Selectable: Select 3000K, 3500K, 4000K, 5000K, 5700K, or 6500K directly on the fixture.
• Up to 24,750 Lumens: Delivers high-output illumination for commercial and industrial high-bay spaces.
• 150 lm/W Efficiency: High luminous efficacy helps deliver strong illumination while reducing power demand.
• 0-10V Dimming Standard: Compatible with 0-10V commercial lighting controls for adjustable light output.
• 120-277V Universal Input: Suitable for a wide range of commercial and industrial electrical systems.
• IP65 Rated: Designed for demanding commercial and industrial environments where additional protection from dust and moisture is required.
• Optional Controls: Motion sensor and emergency battery backup options are available for project-specific requirements.
• Chain Mount Included: Designed for convenient suspended installation in high-ceiling applications.
• Commercial Certifications: UL Listed, DLC Premium, FCC, and RoHS compliant.
• 5-Year Limited Warranty: Backed by a five-year warranty for commercial lighting projects.

Selectable Wattage for Flexible Commercial Lighting Projects

Instead of specifying a separate high bay fixture for every required wattage, this selectable LED linear high bay provides five power settings in a single fixture. Installers can select the appropriate wattage during installation to better match the required lighting level and application.

*Calculated based on luminous efficacy up to 150 lm/W. Actual delivered lumen output may vary by operating conditions and configuration.

6CCT Selectable for Different Applications

The integrated 6CCT selector allows contractors to choose from 3000K, 3500K, 4000K, 5000K, 5700K, or 6500K during installation. This flexibility makes it easier to standardize one fixture across projects that require different color temperatures.

• 3000K: Warm white illumination.
• 3500K: Warm-neutral commercial lighting.
• 4000K: Neutral white for general commercial and industrial environments.
• 5000K: Daylight white commonly used in warehouses and work areas.
• 5700K: Cool daylight for high-visibility applications.
• 6500K: Cool white illumination for applications requiring a brighter visual appearance.

Ideal Applications

This 2FT selectable LED linear high bay is designed for high-output commercial and industrial lighting applications, including:

• Warehouses
• Distribution centers
• Manufacturing facilities
• Factories
• Workshops
• Commercial garages
• Retail and big-box stores
• Gymnasiums
• Industrial work areas
• Commercial high-ceiling spaces

Technical Specifications

Frequently Asked Questions

What wattages can this 2FT LED linear high bay be set to?

The fixture provides five selectable wattage settings: 80W, 100W, 130W, 150W, and 165W.

What color temperatures are available?

Six selectable color temperatures are available: 3000K, 3500K, 4000K, 5000K, 5700K, and 6500K.

How many lumens does the 165W setting produce?

At the maximum 165W setting, the fixture delivers up to 24,750 lumens at an efficacy of up to 150 lm/W.

Is this linear high bay dimmable?

Yes. 0-10V dimming is standard for compatibility with common commercial lighting control systems.

What input voltage does this fixture support?

The fixture operates on 120-277V AC input.

Is a motion sensor available?

Yes. A motion sensor is available as an optional configuration for projects requiring occupancy-based lighting control.

Is emergency backup available?

Yes. An emergency battery backup option is available for compatible project configurations.

What certifications does this LED linear high bay have?

The fixture is UL Listed and DLC Premium qualified, and is also FCC and RoHS compliant.
