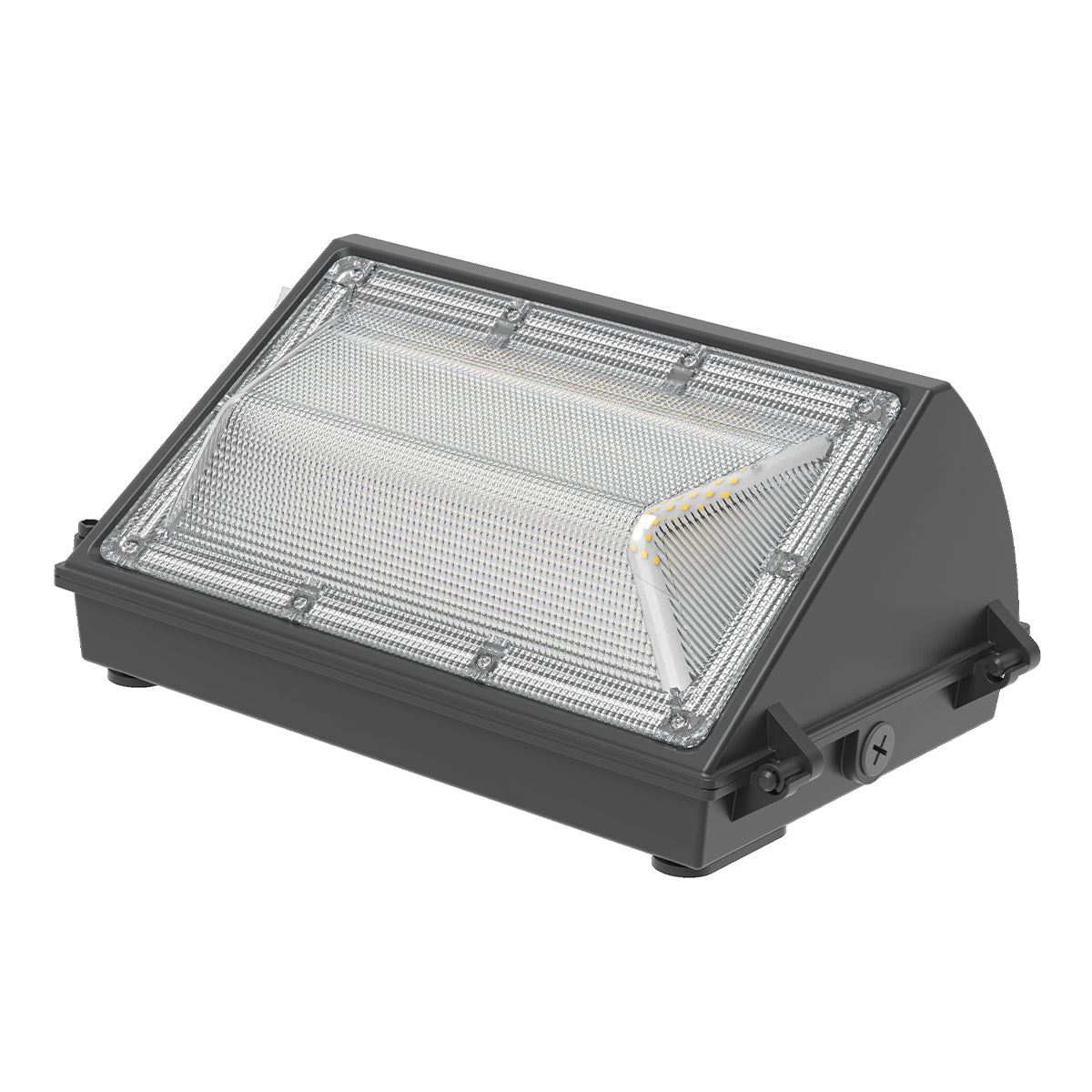

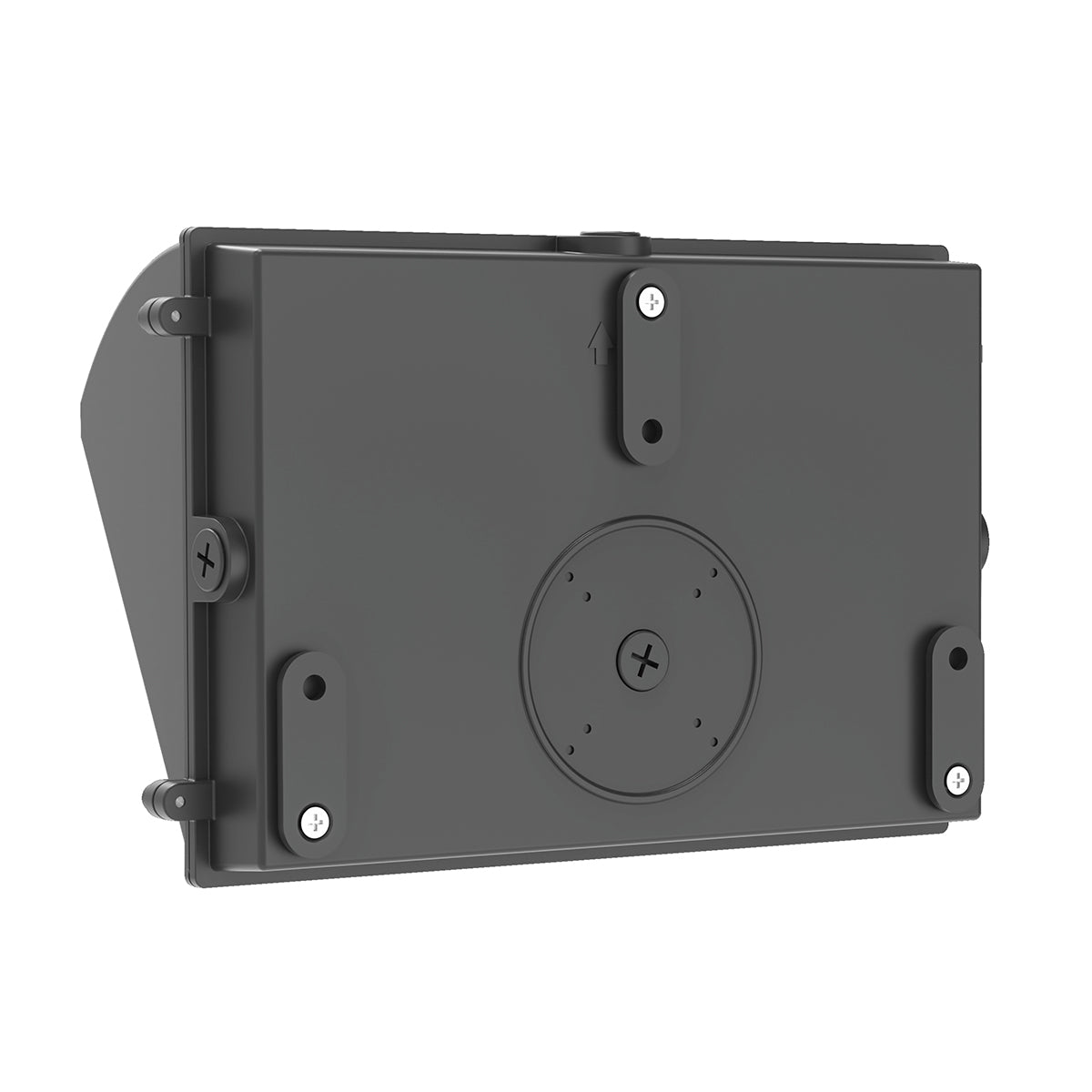

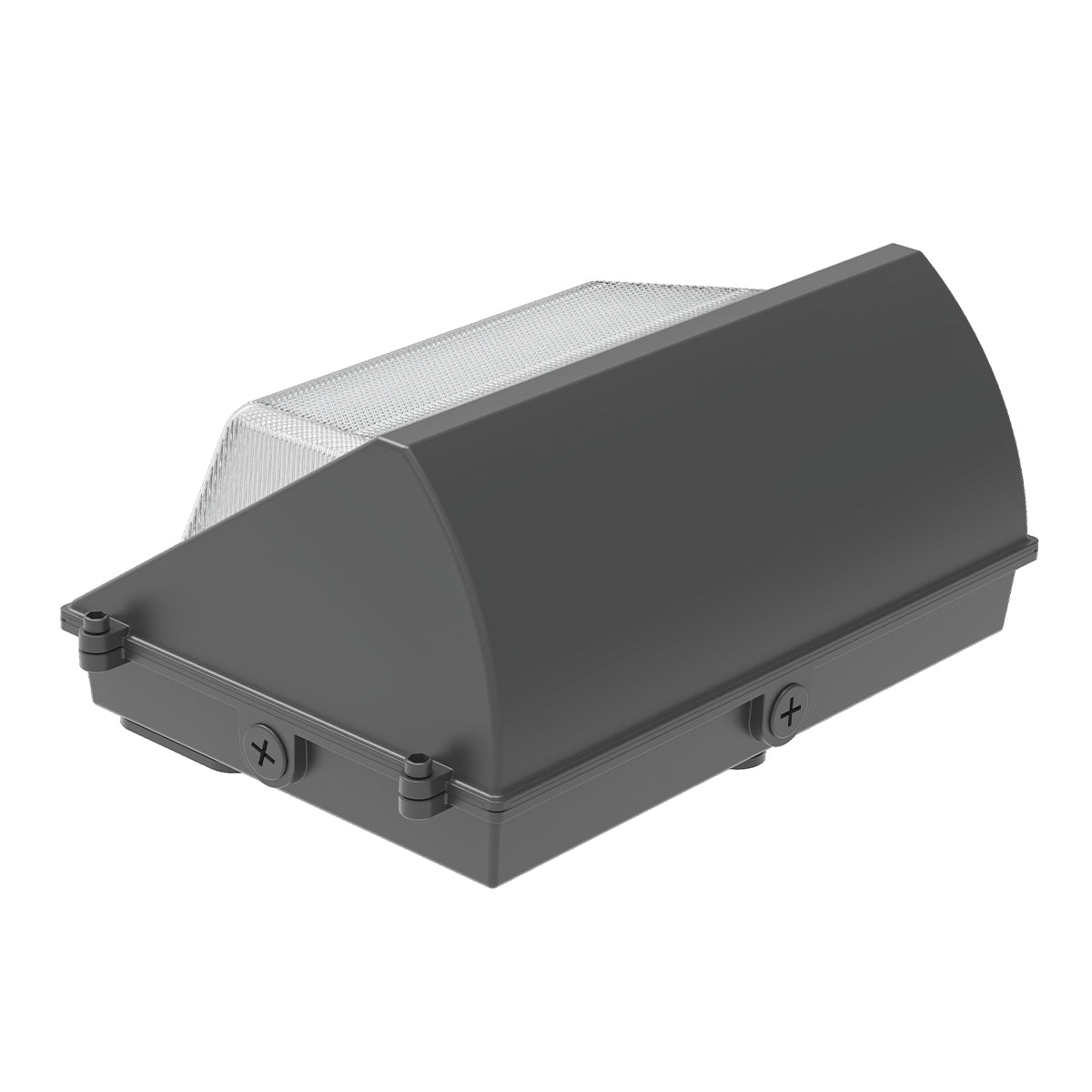

G4 Commercial Cutoff LED Wall Pack Light 65W-200W
Regular price
$77.00 USD
Bulk Savings
automatically applied on carts over $500 - Learn more
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Ask an expert
Light Your Project with Confidence
Our commercial lighting solutions are built for reliable performance and easy installation. Unbox, mount, and upgrade your parking lot, warehouse, or outdoor space with high-efficiency illumination.
Certification Passed
Product Overview
Engineered for strict glare-control outdoor lighting applications, the G4 Commercial Cutoff LED Wall Pack Light delivers high-performance perimeter and perimeter-security illumination for commercial office buildings, industrial warehouses, loading docks, retail centers, and educational campuses. Featuring a full-cutoff dark-sky friendly architectural housing, this fixture directs 100% of its light downward, eliminating harsh glare, light trespass onto adjacent properties, and sky glow. Built with field-selectable wattage tuning from 65W up to 200W alongside CCT tunability, it serves as a highly efficient replacement for traditional 175W–600W metal halide or high-pressure sodium wall packs.
-
Full-Cutoff Dark-Sky Friendly Design: Zero-uplight architectural housing optics direct light strictly downward to meet strict municipal light pollution codes and prevent light trespass.
-
Broad Field-Selectable Wattage (65W–200W): Onboard DIP switches allow installer customization of power levels on-site (e.g., 65W / 80W / 120W / 150W / 200W) to match exact mounting heights and foot-candle specifications.
-
Tunable Color Temperature (CCT Selectable): Integrated switch enables quick selection between neutral and crisp white color temperatures (3000K / 4000K / 5000K) to complement overall property aesthetics.
-
Rugged Outdoor-Rated Construction: Precision die-cast aluminum housing featuring integrated cooling fins, an IP65/IP66 wet-location seal, and a UV-resistant anti-corrosion powder coat finish.
-
Commercial Grade & Certified: Equipped with a 0–10V continuous dimming driver and optional sensor/photocell receptacle; UL/ETL Listed for safety compliance and DLC Premium Qualified for utility rebate eligibility.
Variant Procurement Matrix
| SKU | Series | Size | Wattage | Input Voltage | CCT | Configuration |
|---|---|---|---|---|---|---|
| EDI-WL-65W G4 | G4 | Not provided | 25W-35W-40W-50W-65W | 120-277V/120-347V | 3000-3500-4000-5000-5700-6500 | Daylight On/Off / Black Housing |
| EDI-WL-130W G4 | G4 | Not provided | 50W-65W-80W-100W-130W | 120-277V/120-347V | 3000-3500-4000-5000-5700-6500 | Daylight On/Off / Brown Housing |
| EDI-WL-200W G4 | G4 | Not provided | 80W-120W-150W-180W-200W | 120-277V/120-347V | 3000-3500-4000-5000-5700-6500 | Cutoff / Black Housing |
Applications & Industries
- Building perimeter wall lighting
- Exterior security lighting
- Cutoff wall-pack projects
Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.
Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.
Specifications
| Wattage | 65W/130W/200W |
| LPW | 154.0 |
| Certifications | ETL / DLC / FCC |
| Lifetime | 50000 hours |
| Luminous | 167 lm; 154 lm |
| Voltage | 120-277V/120-347V |
| CRI | 80 |
| Color Temperature Range | 3000-3500-4000-5000-5700-6500 |
| Applications | Building perimeter wall lighting Exterior security lighting Cutoff wall-pack projects Distributor wall-pack inventory |
| Efficacy per W | 167 lm/W; 154 lm/W |
| Operating Temperature | -4°F~104°F |
| Dimming Details | 0-10V Dimming |
| Size | Not provided |
| Warranty | 5 year |
