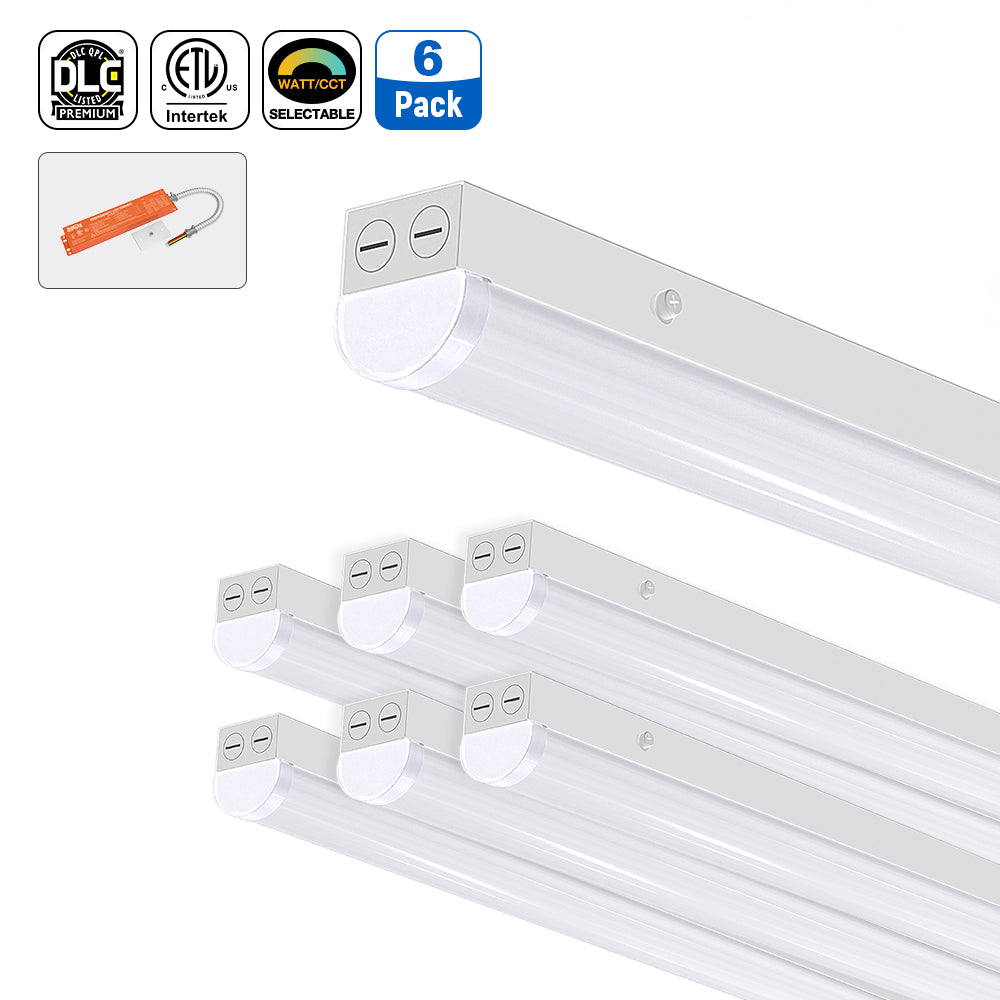

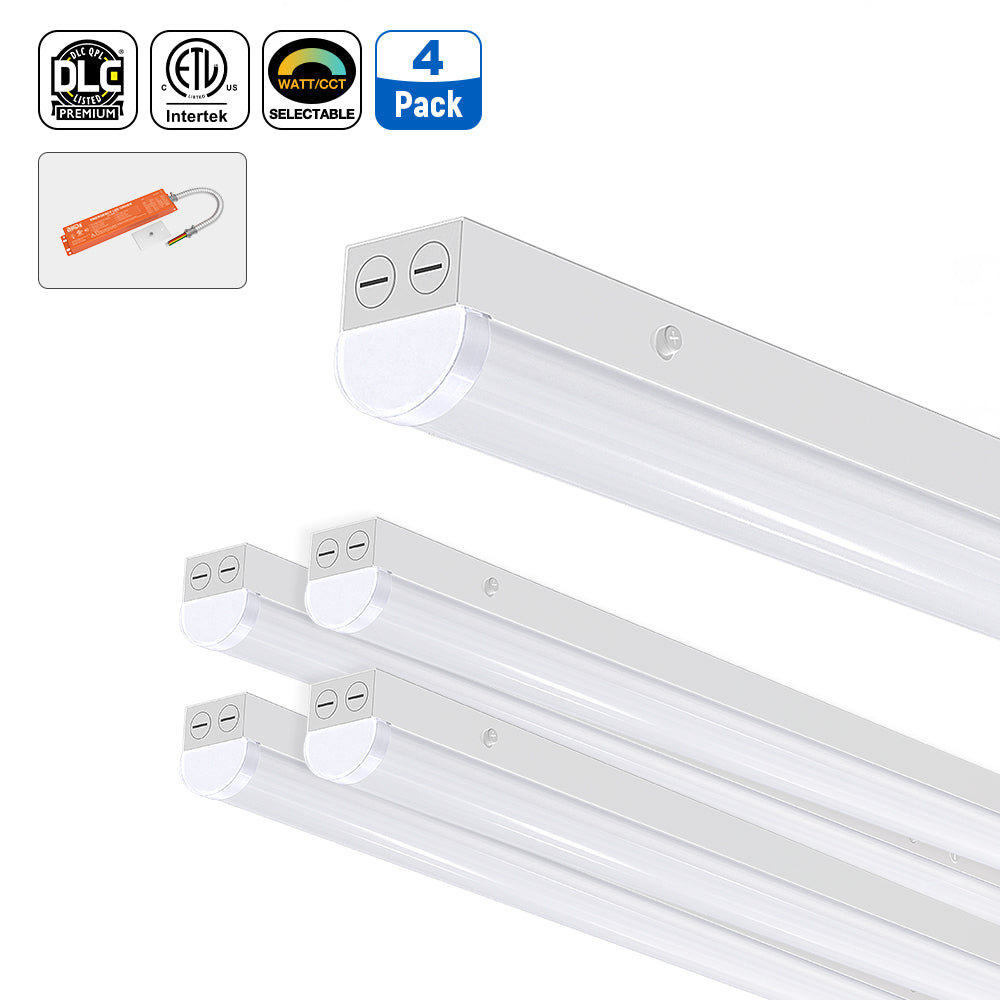

8FT LED Linear Strip Light – 70W/80W/90W Selectable, 5CCT, Emergency Backup
8FT LED Linear Strip Light – 70W/80W/90W Selectable, 5CCT, Emergency Backup
Regular price
$804.99 USD
$201.25 / unit
Bulk Savings
automatically applied on carts over $500 - Learn more
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Ask an expert
Light Your Project with Confidence
Our commercial lighting solutions are built for reliable performance and easy installation. Unbox, mount, and upgrade your parking lot, warehouse, or outdoor space with high-efficiency illumination.
Certification Passed
Commercial Linear Lighting • Emergency Backup
8FT LED Linear Strip Light with Selectable Wattage & Emergency Backup
The ST02 8FT LED Linear Strip Light is a high-output commercial lighting solution designed for warehouses, storage areas, utility spaces, commercial buildings, schools, retail environments and other large indoor applications. With 70W / 80W / 90W selectable wattage, installers can adjust fixture output on site to meet different ceiling heights, room layouts and illumination requirements.
At the maximum 90W setting, the fixture delivers up to 11,700 lumens at 130 LM/W. Five selectable color temperatures, 120-277V input, 0-10V dimming and built-in emergency backup provide the flexibility needed for commercial retrofit, facility upgrade and new-construction projects.
70W / 80W / 90W Selectable Wattage
Up to 11,700 LM Maximum Light Output
130 LM/W Luminous Efficacy
5CCT 3500K to 6500K Selectable
70W / 80W / 90W Selectable Wattage
One 8FT fixture provides three selectable power settings, giving contractors and facility managers flexibility to adjust light output according to project requirements.
70W Selectable Power
80W Selectable Power
90W Selectable Power
Selectable wattage allows the same fixture platform to serve areas with different light-level requirements, reducing the need to specify or stock separate fixed-wattage fixtures.
5CCT Selectable from 3500K to 6500K
Choose the preferred color temperature during installation to suit different commercial environments, tasks and lighting preferences.
3500K
4000K
5000K
5700K
6500K
High-Output Commercial Linear Lighting
The 8FT ST02 combines high lumen output, adjustable settings, professional dimming and flexible mounting for demanding commercial spaces.
01
Up to 11,700 Lumens
At the maximum 90W setting, this 8FT LED linear strip light delivers up to 11,700 lumens of high-output overhead illumination for larger indoor spaces.
02
130 LM/W Efficiency
Luminous efficacy of up to 130 lumens per watt provides strong usable light output while supporting energy-efficient commercial lighting designs.
03
120-277V Commercial Input
The fixture supports 120-277V AC, covering common commercial electrical systems for a broad range of indoor projects.
04
0-10V Dimmable
Built-in 0-10V dimming compatibility allows the fixture to integrate with compatible commercial lighting controls for adjustable light levels.
05
120° Wide Beam Angle
A 120° beam angle helps provide broad light distribution across warehouses, storage areas and other large commercial spaces.
06
Flexible Mounting
Supports both surface mounting and suspended installation, allowing the fixture to adapt to different commercial ceiling configurations and lighting layouts.
Built-In Emergency Backup
This ST02 configuration includes a built-in emergency backup system designed to provide emergency lighting support when normal electrical power is interrupted.
Combining normal commercial illumination and emergency backup capability within the same fixture platform can simplify lighting layouts for commercial and institutional projects.
Emergency operating duration and emergency lumen output should be confirmed according to project-specific requirements.
Emergency
Backup Integrated Emergency Configuration
Backup Integrated Emergency Configuration
Linkable for Continuous Linear Lighting
The ST02 linear strip fixture supports seamless linking to create continuous rows of lighting across warehouses, utility areas, corridors and other long commercial spaces.
The 8FT configuration supports up to 5 connected fixtures within the specified connection limit.
Up to 5 8FT Fixtures Connected
Recommended Applications
The high-output 8FT design is especially suitable for larger commercial and institutional indoor spaces.
Warehouses
Storage Areas
Utility Rooms
Commercial Garages
Workshops
Maintenance Areas
Schools
Healthcare Facilities
Retail Stores
Commercial Offices
Corridors
Commercial Buildings
Commercial-Grade Performance & Certification
Designed for professional commercial lighting projects with recognized safety and efficiency qualifications.
cETLus Certified
DLC Qualified
50,000 Hrs Rated Lifetime
5 Years Limited Warranty
8FT LED Linear Strip Light Specifications
Key technical information for contractors, electricians, facility managers and commercial lighting buyers.
| Product Type | LED Linear Strip Light |
|---|---|
| Series | ST02 |
| Length | 8FT |
| Selectable Wattage | 70W / 80W / 90W |
| Maximum Lumen Output | Up to 11,700 Lumens |
| Luminous Efficacy | Up to 130 LM/W |
| Selectable CCT | 3500K / 4000K / 5000K / 5700K / 6500K |
| Input Voltage | 120-277V AC |
| Dimming | 0-10V Dimming |
| Emergency Backup | Built-In Emergency Configuration |
| CRI | >80 |
| Beam Angle | 120° |
| Operating Temperature | -20°C to 45°C |
| Mounting | Surface Mount / Suspended Mount |
| Linkable | Yes |
| Certifications | cETLus / DLC |
| Rated Lifetime | 50,000 Hours |
| Warranty | 5-Year Limited Warranty |
Why Choose an 8FT Selectable LED Strip Light with Emergency Backup?
Larger commercial spaces often require higher lumen output and longer fixture runs than standard 4FT lighting systems. The 8FT ST02 LED linear strip light provides up to 11,700 lumens while allowing installers to select between 70W, 80W and 90W.
Five selectable color temperatures provide additional installation flexibility, while 0-10V dimming enables integration with compatible commercial lighting controls.
With built-in emergency backup and a linkable linear design, this configuration is well suited for warehouses, institutional facilities and larger commercial spaces requiring flexible normal and emergency lighting.
Frequently Asked Questions
What wattage settings are available on this 8FT LED strip light?
The fixture supports 70W, 80W and 90W selectable wattage settings.
How many lumens does the 90W setting produce?
At its maximum 90W setting, the fixture delivers up to 11,700 lumens at up to 130 LM/W.
What color temperatures can be selected?
Five selectable CCT settings are available: 3500K, 4000K, 5000K, 5700K and 6500K.
What voltage does this fixture support?
This configuration supports 120-277V AC input.
Is this 8FT LED linear strip light dimmable?
Yes. The fixture supports 0-10V dimming with compatible controls.
Does the fixture include emergency backup?
Yes. This configuration includes a built-in emergency backup system designed to provide emergency lighting support when normal power is interrupted.
Can multiple 8FT fixtures be connected together?
Yes. The ST02 supports seamless linking, and the 8FT configuration supports up to 5 connected fixtures within the specified connection limit.
Where is this 8FT LED strip light typically used?
Common applications include warehouses, storage areas, commercial garages, workshops, utility rooms, schools, healthcare facilities, retail spaces and other large commercial indoor areas.
Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.
Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.
Specifications
| Wattage | 70W / 80W / 90W |
| LPW | 130.0 |
| Certifications | cETLus, DLC |
| Lifetime | 50,000 Hours |
| Luminous | up to 11,700 lm |
| Voltage | 120-277V |
| CRI | 80 |
| Beam Angle | 120 |
| Color Temperature Range | 3500K / 4000K / 5000K / 5700K / 6500K selectable |
| Mount type | Supports both surface mounting and suspended installation, suitable for a variety of commercial ceiling structures. |
| Applications | ideal for offices, schools, retail stores, restaurants, healthcare facilities, hospitality spaces, corridors, utility rooms, storage rooms, warehouses, maintenance areas, and commercial indoor spaces that need bright, efficient, and emergency-ready linear lighting. |
| Efficacy per W | 130 lm/W |
| Operating Temperature | -20°C to 45°C |
| Dimming Details | 0-10V dimming |
| Size | 8FT |
| Warranty | 5 year |
